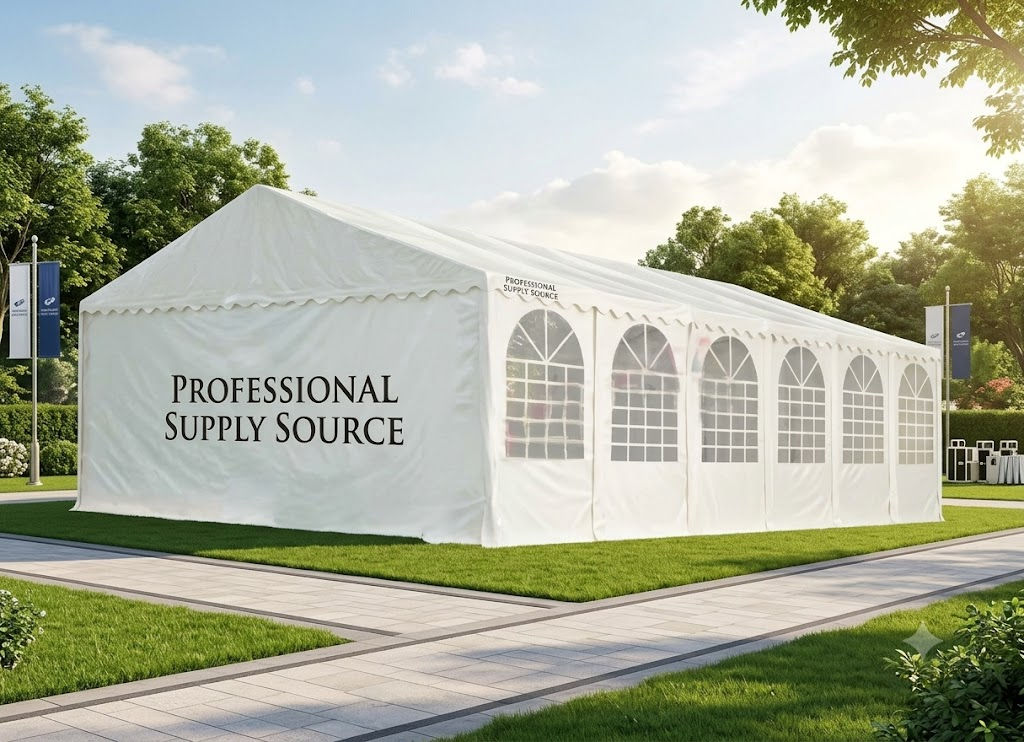

5x10m Frame Tents for sale
A 5m x 10m Frame Tent offers 50\,\text{m}^2 of completely open, unobstructed clear-span interior space with no center poles. It is one of the most popular and profitable investments for event rental start-ups, backyard party hire companies, church ministries, and catering businesses because it is lightweight, highly portable, and can be easily erected by just two people.
📋 Technical Structural Specifications
1. Dimensions & Capacity Matrix
Width (Span): 5000 mm (5.0m)
Length: 10,000 mm (10.0m)
Bay Distance (Eave to Eave): Standard 2.5m or 3.3m modular increments (depending on frame tier) for cross-braced rigidity.
Eave Height (Side Wall Height): 2.0m to 2.2m (Standard vertical clearance).
Ridge Height (Peak): Approx. 3.0m to 3.3m (Based on a standard roof pitch).
Total Floor Area: 50\,\text{m}^2
Event Seating Capacities:
Cinema / Conference Rows: Approx. 45–50 people.
Cocktail / Standing Function: Approx. 50–60 people.
Banquet Dining (Round Tables): Approx. 25–30 people.
2. Frame Architecture & Tubing Profiles
Depending on your target budget and deployment frequency, these commercial-grade tents are typically sold in one of two frame styles:
Profile Material Options:
Heavy-Duty Steel Spec: Hot-dipped galvanized or powder-coated structural steel tubing (Extremely robust, excellent weight ballast against heavy winds).
Premium Aluminum Spec: High-tensile Anodized Aluminum Alloy 6061-T6 (Ultra-lightweight, completely rust-proof, sleek finish).
Profile Dimensions: Heavy round tubing ranging from \varnothing\,38\,\text{mm} to \varnothing\,50\,\text{mm} with a wall thickness of 1.5\,\text{mm} to 2.0\,\text{mm}.
Connectors & Corner Joints: Heavy-duty, thickened galvanized steel insert joints fitted with quick-release spring buttons or thumb-screws for completely tool-free, rapid assembly.
Wind Load Capacity: Safely handles typical operational wind gusts up to 70\,\text{km/h} - 80\,\text{km/h} when staked properly.
3. Fabric Membrane Specification (Roof & Curtains)
Material Composition: Industrial-grade, high-density double PVC-coated polyester textile (or heavy-duty PVC-backed Oxford fabric for light-duty variants).
Material Weights:
Roof Cover: 550\,\text{g/m}^2 to 650\,\text{g/m}^2 (Pure block-out white PVC to shield guests from heavy UV rays and keep the interior cool).
Side Walls: 450\,\text{g/m}^2 to 550\,\text{g/m}^2 (Translucent or clear window panel options).
Treatments & Certifications:
Waterproofing: 100\% Waterproof execution utilizing high-frequency thermally welded or taped seams.
Flame Retardancy: Treated to meet standard building fire codes (B1, M2 fire safety ratings).
UV Protection: Formulated with advanced UV inhibitors to prevent fabric weakening, yellowing, and cracking under heavy sun exposure.
4. Wall & Window Configurations
Removable Side Panels: Side walls are split into modular sections attached via heavy-duty Velcro tracks or bungee loops. They can be rolled up, pulled back like drapes, or removed entirely for open-air summer events.
Window Design: Elegant church-style arched clear PVC windows embedded into the side wall panels to maximize natural ambient lighting.
Entrance Portals: End walls feature heavy-duty zippered door panels on both 5m gable profiles for flexible traffic management.
5. Anchoring & Foundation Systems
Grass / Dirt Fields: Heavy-duty steel ground stakes ($400\,\text{mm} - 500\,\text{mm}$ length) driven directly through the foot plates.
Hard Surfaces (Concrete/Tar): Expandable mechanical anchor bolts or heavy-duty sandbags/concrete weight blocks wrapped around the legs.
🛠️ Performance & Commercial Advantages
Ultra-Compact Logistics: Unlike larger marquees, a broken-down 5m x 10m frame tent packs incredibly tight. The entire frame and fabric kit can fit comfortably inside a standard family SUV, station wagon, or small single-axle utility trailer.
Fast Return on Investment (ROI): Because this size is highly sought after for weekend birthday parties, graduation ceremonies, and family braais/barbecues, it acts as a primary cash-flow driver for small event hire start-ups.
Quick Assembly: A crew of just 2 people can fully erect this structure in under 30–45 minutes, significantly minimizing labor expenses.
